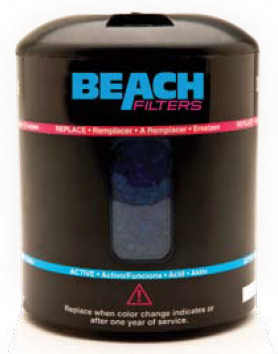

Extreme Duty Breathers

Beach Extreme Duty breathers for harsh environments.

  • Delivers protection through large temperature range, high vibration and high humidity.
  • Three layers of particulate protection to .3µ absolute.
  • Check valve system extends product life
  • Automotive grade nylon housing and solid standpipe
+ MORE INFORMATION
Applications:
  • Especially harsh environments
  • Temperature extremes
  • Marine
  • Construction
  • Mining

Extreme duty breathers are the best desiccant breathers for harsh environments
ModelBB/XD-6
Unit Height6.51'' / 16.54 cm
Unit Diameter5.1'' / 12.95 cm
Amount of Silica Gel1 lb. 12 oz / 790 g
Absorption Capacity (fl.oz./mL)10.72 fl. oz / 315 mL
Operating Temp. Range-40/-40 to 300/148.89
Hydrophilic AgentSilica Gel
Filter MediaePTFE/ 0.3 micron absolute
Body MaterialPolycarbonate/Polybutylene Terephthalate
Max. Flow Rate16 cfm @ 1 PSID
Shipping Weight3.2 lbs. / 20 lbs.
Connection Size1 1/2'' x 16 UN female thread
Extreme duty breathers are the best desiccant breathers for harsh environments
ModelBB/XD-6
Unit Height6.51'' / 16.54 cm
Unit Diameter5.1'' / 12.95 cm
Amount of Silica Gel1 lb. 12 oz / 790 g
Absorption Capacity (fl.oz./mL)10.72 fl. oz / 315 mL
Operating Temp. Range-40/-40 to 300/148.89
Hydrophilic AgentSilica Gel
Filter MediaePTFE/ 0.3 micron absolute
Body MaterialPolycarbonate/Polybutylene Terephthalate
Max. Flow Rate16 cfm @ 1 PSID
Shipping Weight3.2 lbs. / 20 lbs.
Connection Size1 1/2'' x 16 UN female thread
