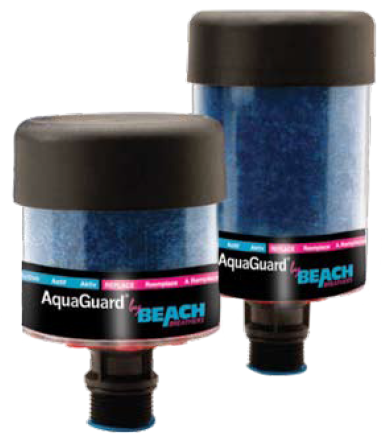

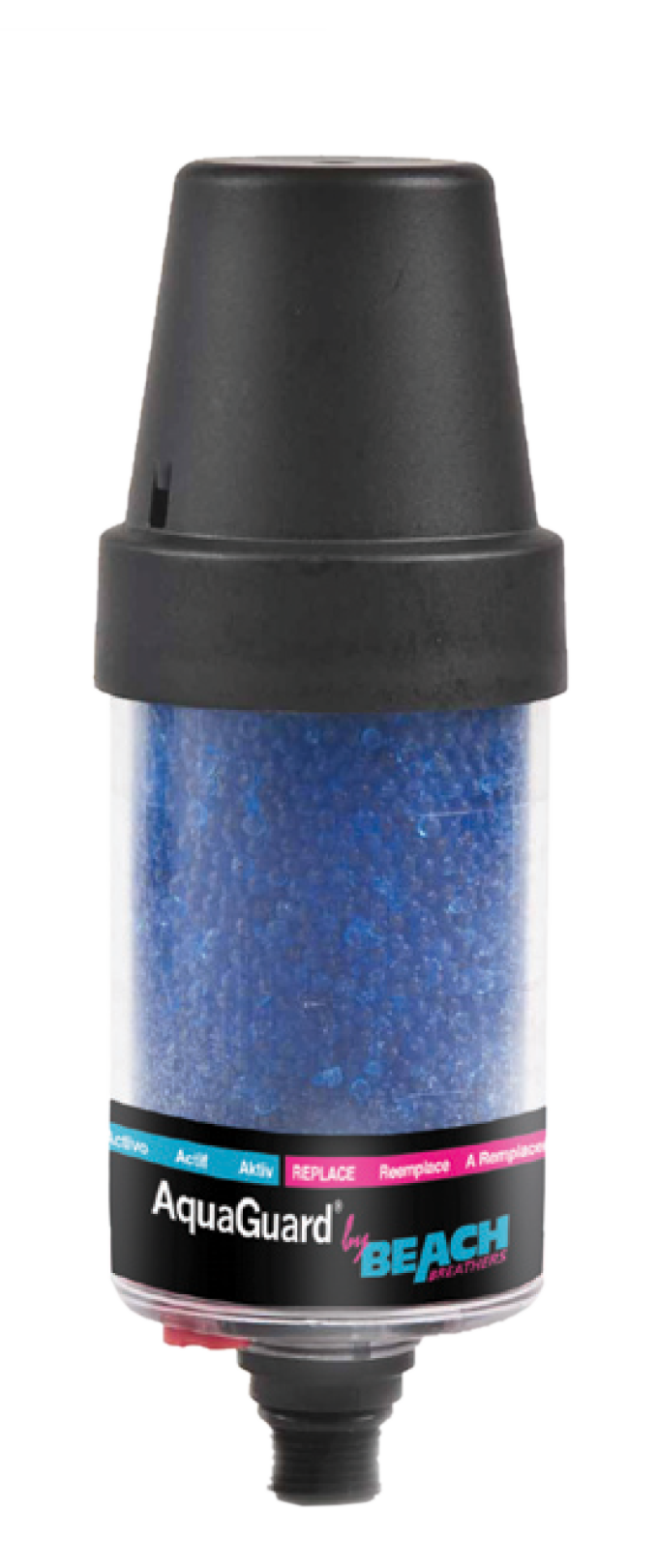

AquaGuard® Desiccant Breathers

Specifically designed for gearbox and pump applications where air flow is at a minimum, AquaGuard® desiccant breathers attack high humidity, keeping lube systems clean and dry. + MORE INFORMATION

  • Prevents pressure and temperature build-up
    • Overpressure bladder design
    • Unique dual check-valve system
  • Blocks the introduction of raw moisture during clean-up and wash-down operations
  • Suitable for 1 cfm applications
In addition, AquaGuard® desiccant breathers:
  • Hybrid technology breather for low-flow applications
  • Ideal for washdowns and high humidity areas
  • Desiccant, particulate filtration ensure incoming air is clean and dry
  • Expansion chamber system isolates lubes from extreme ambiant humidity
  • Check valves ensure no excess pressure/vacuum builds
Features:
  • Foam Pad
  • Patented Polyester Filter
  • Silica Gel/Desiccant
  • Expansion Chamber
  • Four Check Valves
  • Rugged polycarbonate body and nylon standpipe
  • Threaded inlet tube with o-ring
Applications:
  • Thermal expansion/ contraction only
  • High humidity
  • Gearboxes and other low flow applications
  • Pumps
  • Bearing houses
  • Storage drums, Totes
  • Washdown applications
  • Closed loop systems

<< Previous Next >>
PlaceholderPlaceholderPlaceholderPlaceholder
ModelBB-AG-BBVBB-AG-1VBB-AG-2VBB-AG-3VBB-AG-4VBB-AG-1HBB-AG-8H
Unit Height3.9 in./ 99.06 mm5.31 in./ 135 mm6.125 in./ 155.6 mm8.125 in./ 206.4 mm10.125 in./ 257.2 mm7.22 in./ 183 mm9.75 in./ 247.6 mm
Unit Diameter2.52 in./ 64.01 mm2.52 in./ 64 mm4 in./ 101.6 mm4 in./ 101.6 mm4 in./ 101.6 mm2.52 in./ 64 mm4.1 in./ 104.1 mm
Shipping Weight (unit /case).31 lbs./2.14 lbs .14 kg/.97 kg.52 lbs./3.37 lbs .24 kg/1.53 kg1.21 lbs./7.73 lbs .55 kg/3.51 kg1.87 lbs./11.74 lbs .85 kg/5.32 kg2.63 lbs./16.13 lbs 1.2 kg/7.33 kg.58 lbs./3.75 lbs .26 kg/1.7 kg1.81 lbs./11 lbs .82 kg/4.92 kg
Amount Of Desiccant.13 lbs/58.6 g.28 lbs/125.1 g.66 lbs/0.30 kg1.22 lbs/0.56 kg1.88 lbs/0.84 kg.28 lbs/125.1 g.65 lbs/.24 kg
Absorption Capacity (fl.oz./mL).79 fl oz./23.3 mL1.68 fl oz./49.6 mL4 fl oz./118.2 mL7.45 fl oz./220.3 mL11.3 fl oz./333 mL1.68 fl oz./49.6 mL4.05 fl oz./120 mL
Max. Flow Rate1.45 @ 1 psid cfm/41.06 lpm1.45 @ 1 psid cfm/41.06 lpm2.5 @ 1 psid cfm/70.5 lpm2.28 cfm @ 1 PSID1.8 @ 1 psid cfm/50.9 lpm1.41 @ 1 psid cfm/39.93 lpm2.5 @ 1 psid cfm/70.5 lpm
Filtration3 microns absolute (β₃≤200)3 microns absolute (β₃≤200)3 microns absolute (β₃≤200)3 microns absolute (β₃≤200)3 microns absolute (β₃≤200)3 microns absolute (β₃≤200)3 microns absolute (β₃≤200)
Operating Temp. Range-20°F to 200°F/ -29°C to 93°C-20°F to 200°F/ -29°C to 93°C-20°F to 200°F/ -29°C to 93°C-20°F to 200°F/ -29°C to 93°C-20°F to 200°F/ -29°C to 93°C-20°F to 200°F/ -29°C to 93°C-20°F to 200°F/ -29°C to 93°C
Hydrophilic AgentSilica GelSilica GelSilica GelSilica GelSilica GelSilica GelSilica Gel
Filter MediaPolyesterPolyesterPolyesterPolyesterPolyesterPolyesterPolyester
Connection Size3/8 in. multi=fit (NPT,BSPP,BSPT)3/8 in. multi=fit (NPT,BSPP,BSPT)1 in. multi=fit (NPT,BSPP,BSPT1 in. multi=fit (NPT,BSPP,BSPT1 in. multi=fit (NPT,BSPP,BSPT3/8 in. (NPT)1 in. threaded
Body MaterialPolycarbonate, Nylon, Polypropylene, Polyester, Polyurethane, Buna-N, PVCPolycarbonate, Nylon, Polypropylene, Polyester, Polyurethane, Buna-N, PVCPolycarbonate, Nylon, Polypropylene, Polyester, Polyurethane, Buna-N, PVCPolycarbonate, Nylon, Polypropylene, Polyester, Polyurethane, Buna-N, PVCPolycarbonate, Nylon, Polypropylene, Polyester, Polyurethane, Buna-N, PVCPolycarbonate, Nylon, Polypropylene, Polyester, Polyurethane, Buna-N, PVCPolycarbonate, Nylon, Polypropylene, Polyester, Polyurethane, Buna-N, PVC
Expanson Chamber VolumeN/AN/AN/AN/AN/A1.935 inᶟ15.66 inᶟ
Placeholder
ModelBB-AG-BBV
Unit Height3.9 in./ 99.06 mm
Unit Diameter2.52 in./ 64.01 mm
Shipping Weight (unit /case).31 lbs./2.14 lbs .14 kg/.97 kg
Amount Of Desiccant.13 lbs/58.6 g
Absorption Capacity (fl.oz./mL).79 fl oz./23.3 mL
Max. Flow Rate1.45 @ 1 psid cfm/41.06 lpm
Filtration3 microns absolute (β₃≤200)
Operating Temp. Range-20°F to 200°F/ -29°C to 93°C
Hydrophilic AgentSilica Gel
Filter MediaPolyester
Connection Size3/8 in. multi=fit (NPT,BSPP,BSPT)
Body MaterialPolycarbonate, Nylon, Polypropylene, Polyester, Polyurethane, Buna-N, PVC
Expanson Chamber VolumeN/A
ModelBB-AG-8H
Unit Height9.75 in./ 247.6 mm
Unit Diameter4.1 in./ 104.1 mm
Shipping Weight (unit /case)1.81 lbs./11 lbs .82 kg/4.92 kg
Amount Of Desiccant.65 lbs/.24 kg
Absorption Capacity (fl.oz./mL)4.05 fl oz./120 mL
Max. Flow Rate2.5 @ 1 psid cfm/70.5 lpm
Filtration3 microns absolute (β₃≤200)
Operating Temp. Range-20°F to 200°F/ -29°C to 93°C
Hydrophilic AgentSilica Gel
Filter MediaPolyester
Connection Size1 in. threaded
Body MaterialPolycarbonate, Nylon, Polypropylene, Polyester, Polyurethane, Buna-N, PVC
Expanson Chamber Volume15.66 inᶟ
Placeholder
ModelBB-AG-4V
Unit Height10.125 in./ 257.2 mm
Unit Diameter4 in./ 101.6 mm
Shipping Weight (unit /case)2.63 lbs./16.13 lbs 1.2 kg/7.33 kg
Amount Of Desiccant1.88 lbs/0.84 kg
Absorption Capacity (fl.oz./mL)11.3 fl oz./333 mL
Max. Flow Rate1.8 @ 1 psid cfm/50.9 lpm
Filtration3 microns absolute (β₃≤200)
Operating Temp. Range-20°F to 200°F/ -29°C to 93°C
Hydrophilic AgentSilica Gel
Filter MediaPolyester
Connection Size1 in. multi=fit (NPT,BSPP,BSPT
Body MaterialPolycarbonate, Nylon, Polypropylene, Polyester, Polyurethane, Buna-N, PVC
Expanson Chamber VolumeN/A
Placeholder
ModelBB-AG-3V
Unit Height8.125 in./ 206.4 mm
Unit Diameter4 in./ 101.6 mm
Shipping Weight (unit /case)1.87 lbs./11.74 lbs .85 kg/5.32 kg
Amount Of Desiccant1.22 lbs/0.56 kg
Absorption Capacity (fl.oz./mL)7.45 fl oz./220.3 mL
Max. Flow Rate2.28 cfm @ 1 PSID
Filtration3 microns absolute (β₃≤200)
Operating Temp. Range-20°F to 200°F/ -29°C to 93°C
Hydrophilic AgentSilica Gel
Filter MediaPolyester
Connection Size1 in. multi=fit (NPT,BSPP,BSPT
Body MaterialPolycarbonate, Nylon, Polypropylene, Polyester, Polyurethane, Buna-N, PVC
Expanson Chamber VolumeN/A
Placeholder
ModelBB-AG-2V
Unit Height6.125 in./ 155.6 mm
Unit Diameter4 in./ 101.6 mm
Shipping Weight (unit /case)1.21 lbs./7.73 lbs .55 kg/3.51 kg
Amount Of Desiccant.66 lbs/0.30 kg
Absorption Capacity (fl.oz./mL)4 fl oz./118.2 mL
Max. Flow Rate2.5 @ 1 psid cfm/70.5 lpm
Filtration3 microns absolute (β₃≤200)
Operating Temp. Range-20°F to 200°F/ -29°C to 93°C
Hydrophilic AgentSilica Gel
Filter MediaPolyester
Connection Size1 in. multi=fit (NPT,BSPP,BSPT
Body MaterialPolycarbonate, Nylon, Polypropylene, Polyester, Polyurethane, Buna-N, PVC
Expanson Chamber VolumeN/A
ModelBB-AG-1V
Unit Height5.31 in./ 135 mm
Unit Diameter2.52 in./ 64 mm
Shipping Weight (unit /case).52 lbs./3.37 lbs .24 kg/1.53 kg
Amount Of Desiccant.28 lbs/125.1 g
Absorption Capacity (fl.oz./mL)1.68 fl oz./49.6 mL
Max. Flow Rate1.45 @ 1 psid cfm/41.06 lpm
Filtration3 microns absolute (β₃≤200)
Operating Temp. Range-20°F to 200°F/ -29°C to 93°C
Hydrophilic AgentSilica Gel
Filter MediaPolyester
Connection Size3/8 in. multi=fit (NPT,BSPP,BSPT)
Body MaterialPolycarbonate, Nylon, Polypropylene, Polyester, Polyurethane, Buna-N, PVC
Expanson Chamber VolumeN/A
ModelBB-AG-1H
Unit Height7.22 in./ 183 mm
Unit Diameter2.52 in./ 64 mm
Shipping Weight (unit /case).58 lbs./3.75 lbs .26 kg/1.7 kg
Amount Of Desiccant.28 lbs/125.1 g
Absorption Capacity (fl.oz./mL)1.68 fl oz./49.6 mL
Max. Flow Rate1.41 @ 1 psid cfm/39.93 lpm
Filtration3 microns absolute (β₃≤200)
Operating Temp. Range-20°F to 200°F/ -29°C to 93°C
Hydrophilic AgentSilica Gel
Filter MediaPolyester
Connection Size3/8 in. (NPT)
Body MaterialPolycarbonate, Nylon, Polypropylene, Polyester, Polyurethane, Buna-N, PVC
Expanson Chamber Volume1.935 inᶟ
